Undermount

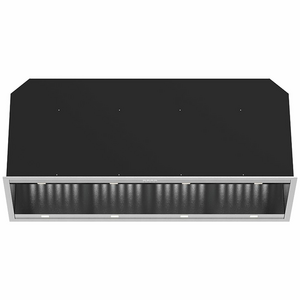

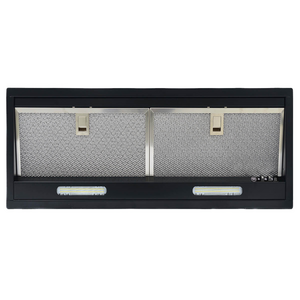

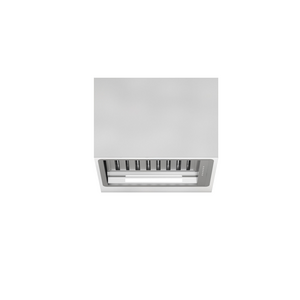

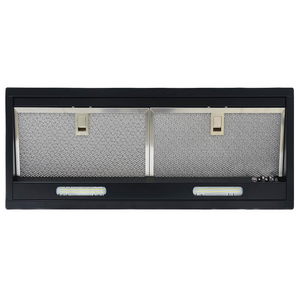

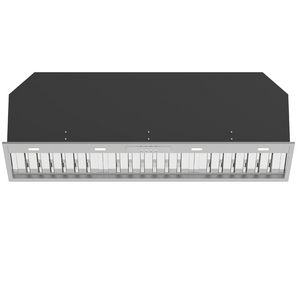

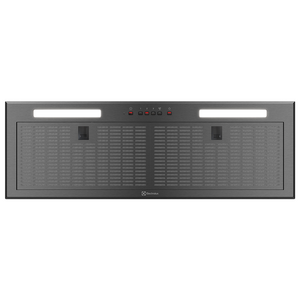

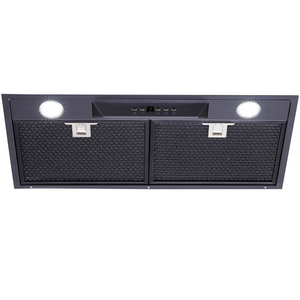

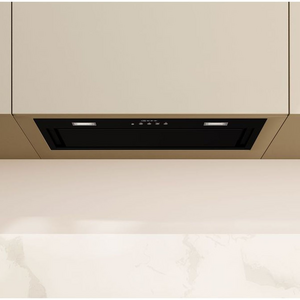

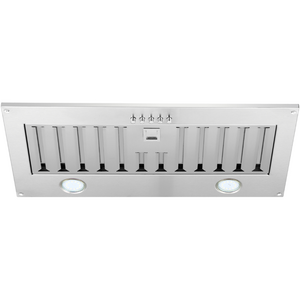

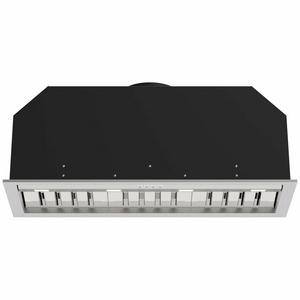

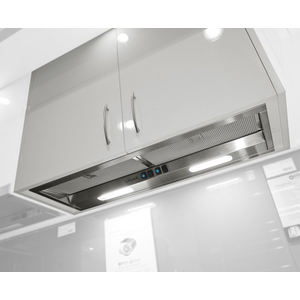

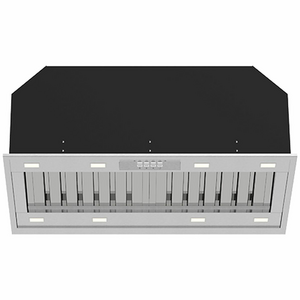

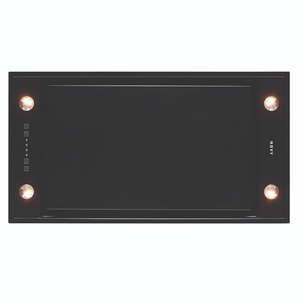

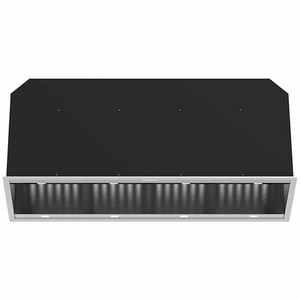

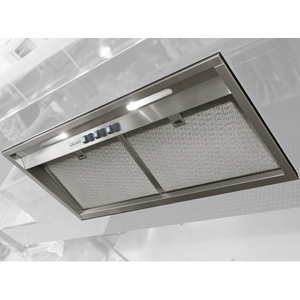

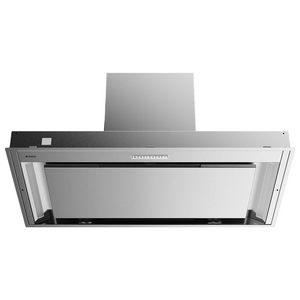

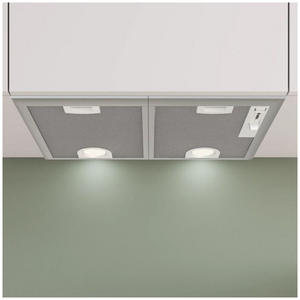

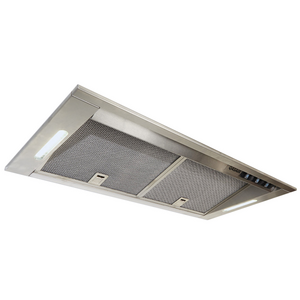

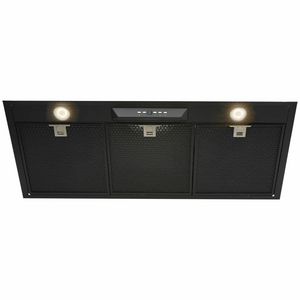

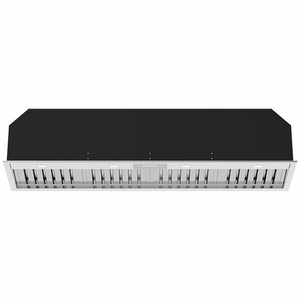

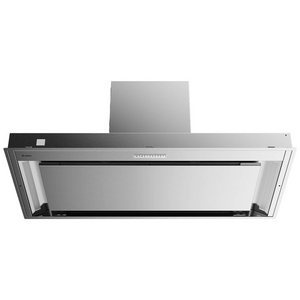

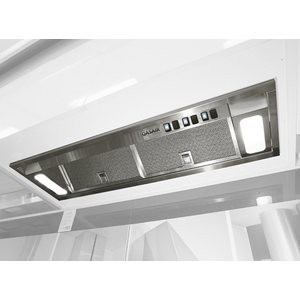

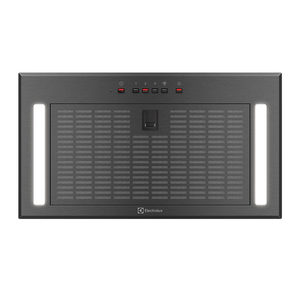

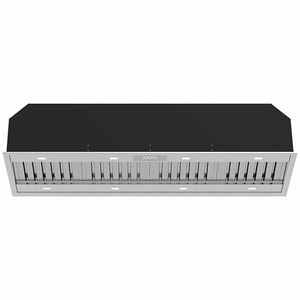

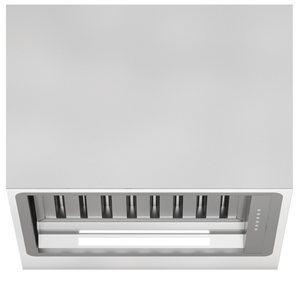

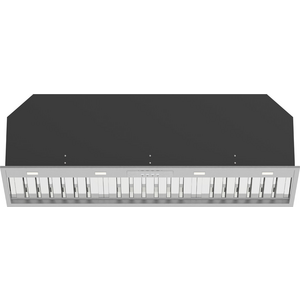

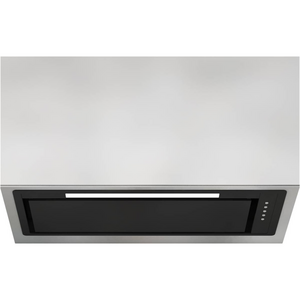

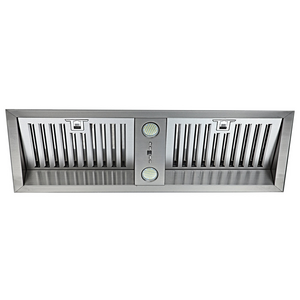

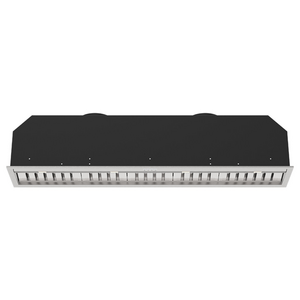

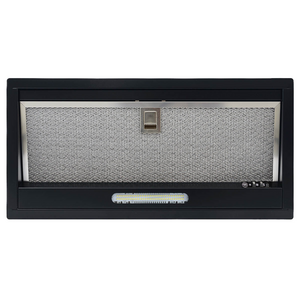

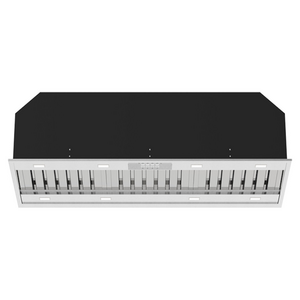

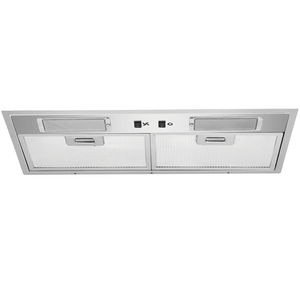

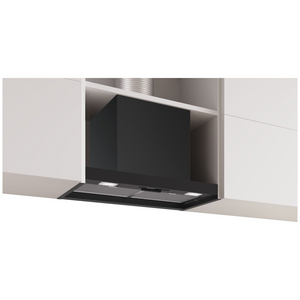

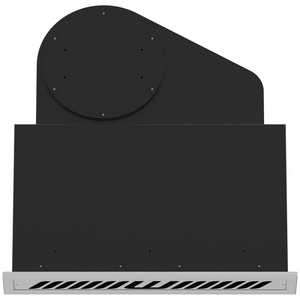

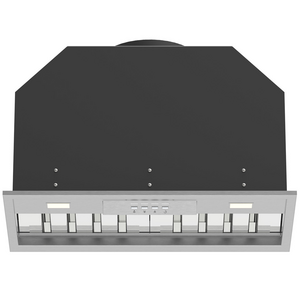

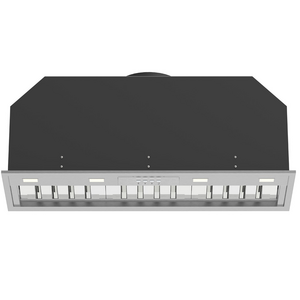

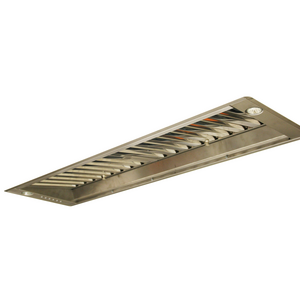

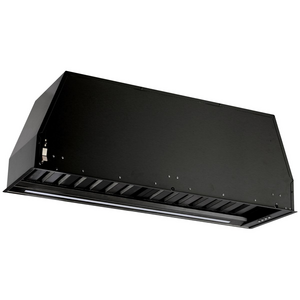

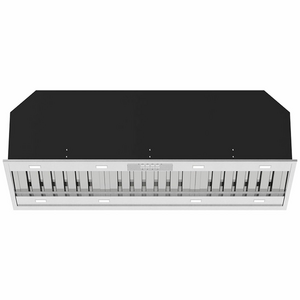

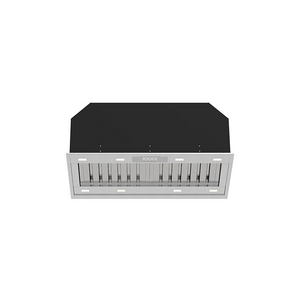

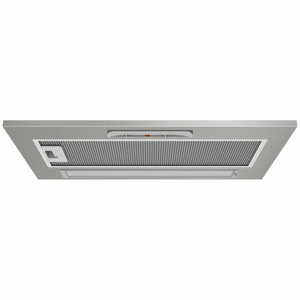

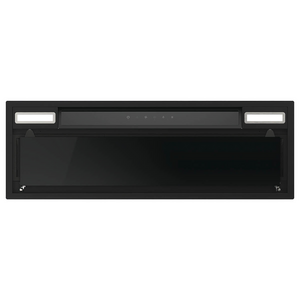

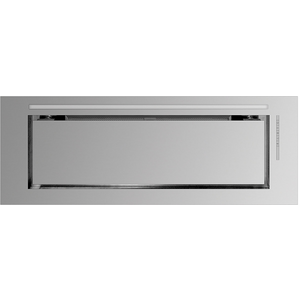

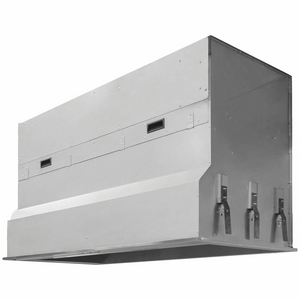

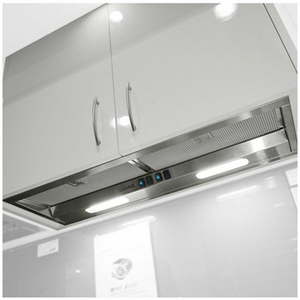

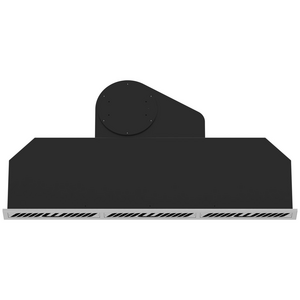

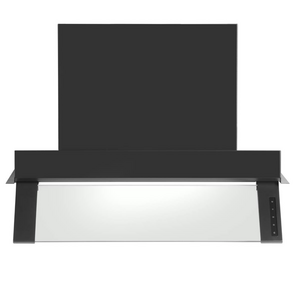

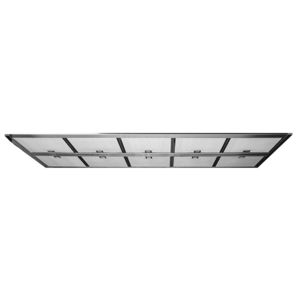

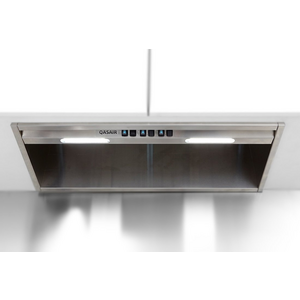

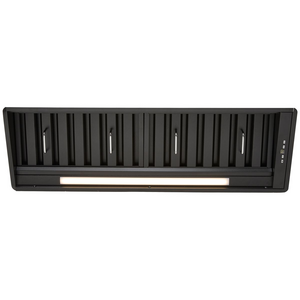

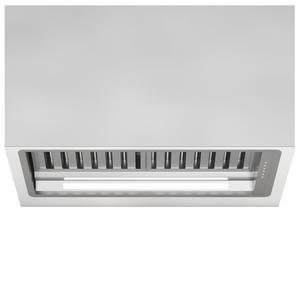

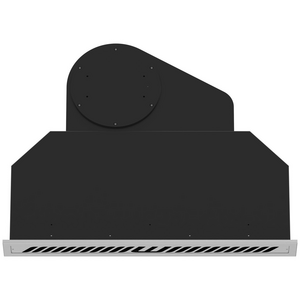

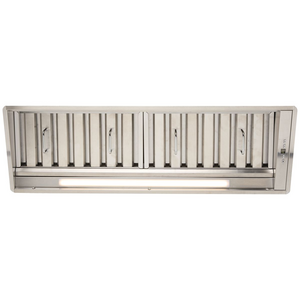

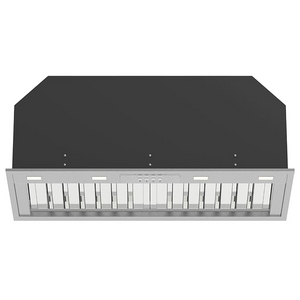

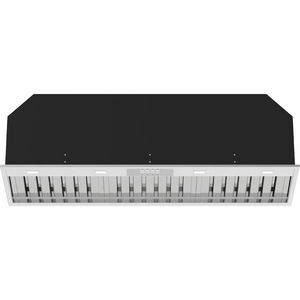

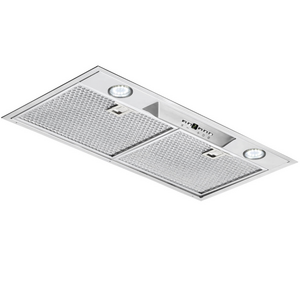

The most common: built into the cupboard above the cooktop, so only the underside shows. Cheap, quiet in the kitchen's design, easy to duct.
A rangehood should be at least as wide as the cooktop and ducted outside. Recirculating hoods filter grease but put the steam and smell back in the room.
The most common: built into the cupboard above the cooktop, so only the underside shows. Cheap, quiet in the kitchen's design, easy to duct.

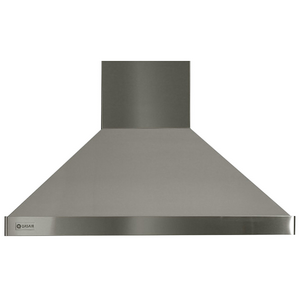

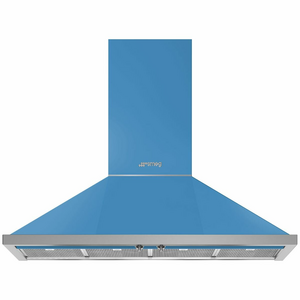

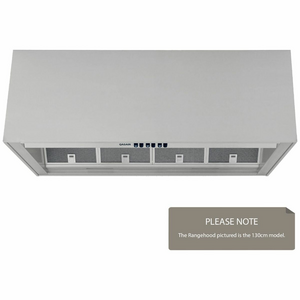

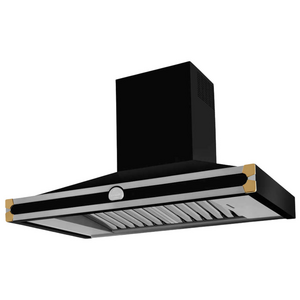

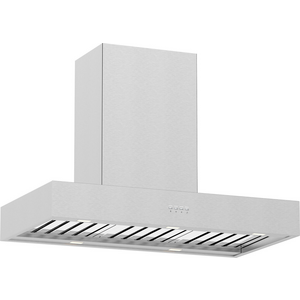

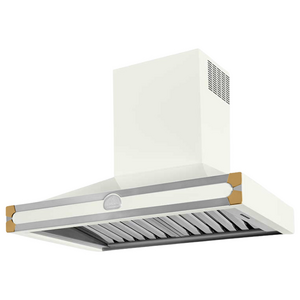

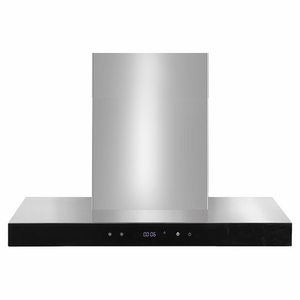

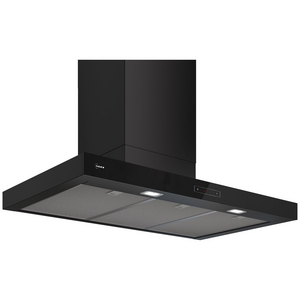

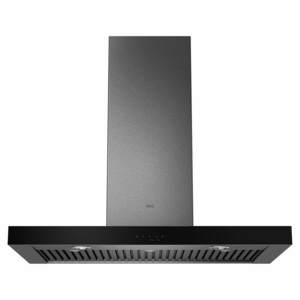

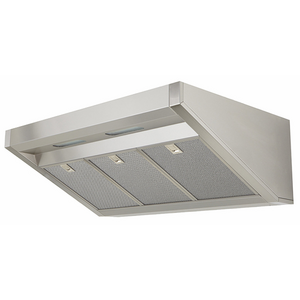

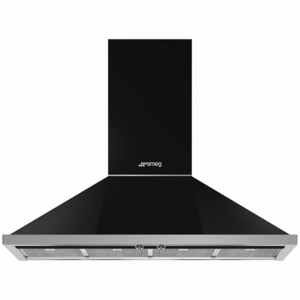

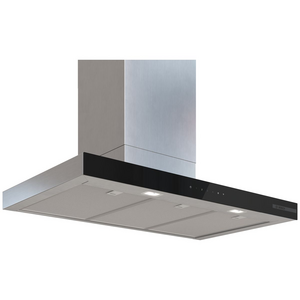

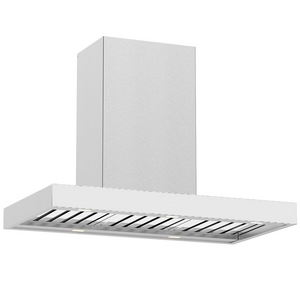

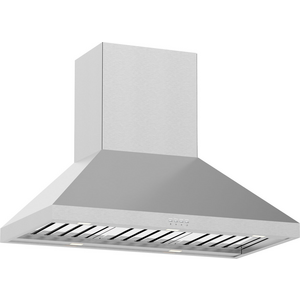

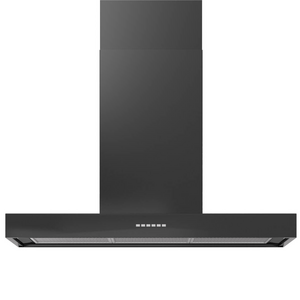

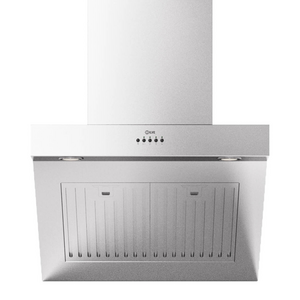

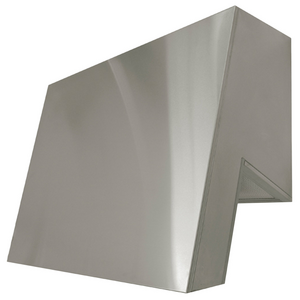

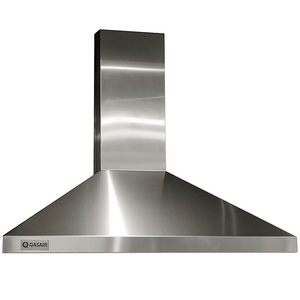

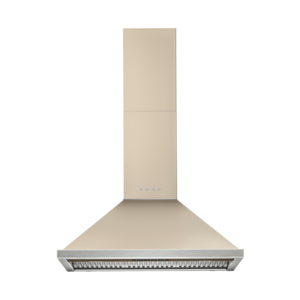

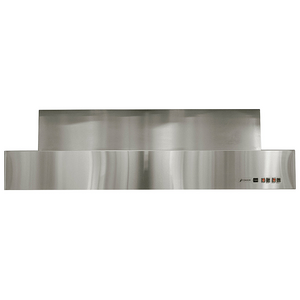

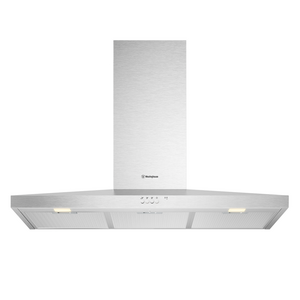

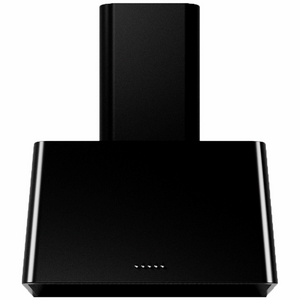

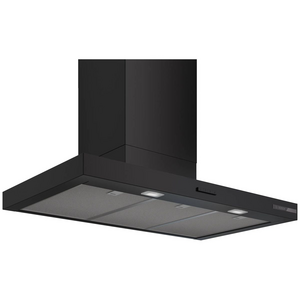

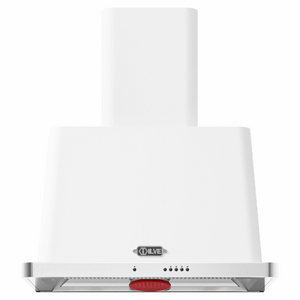

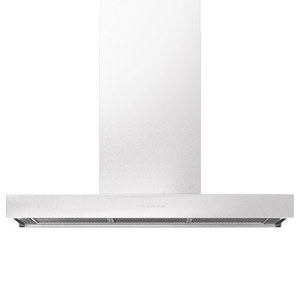

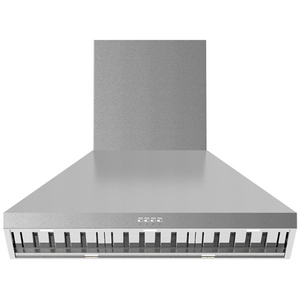

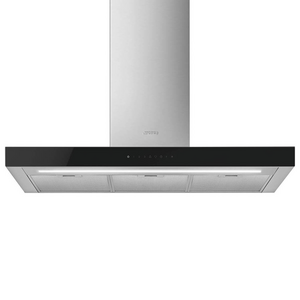

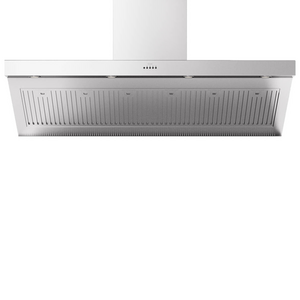

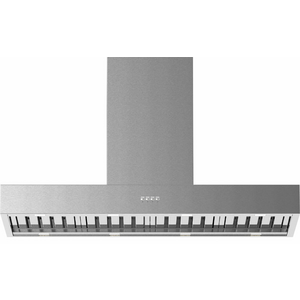

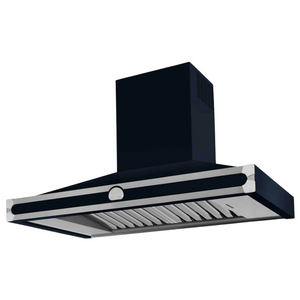

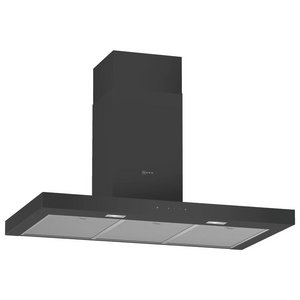

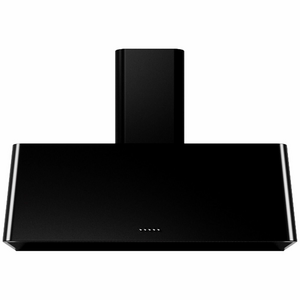

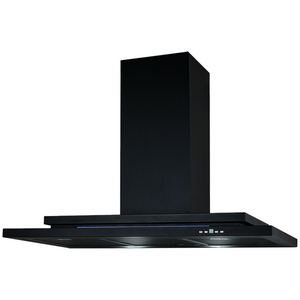

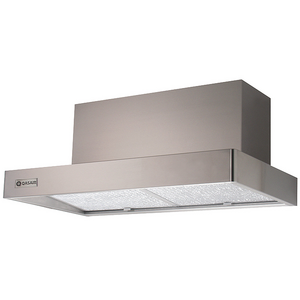

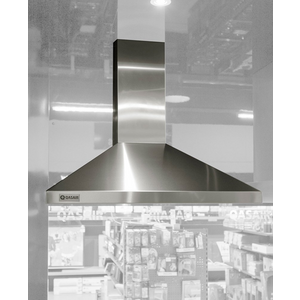

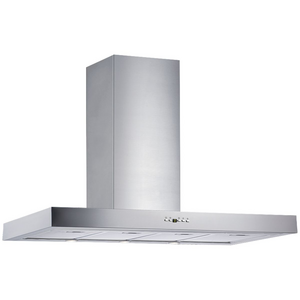

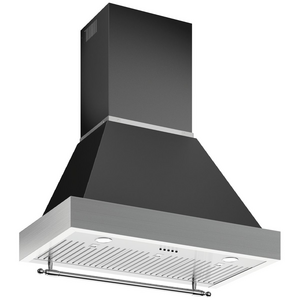

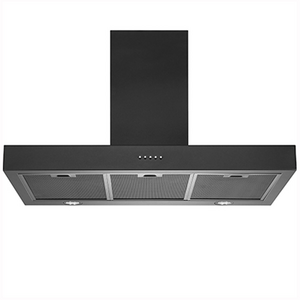

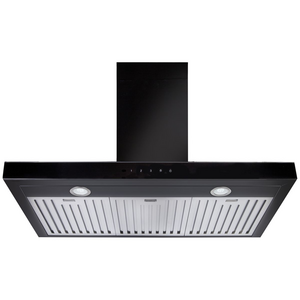

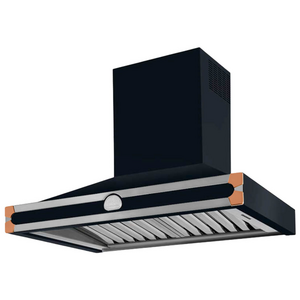

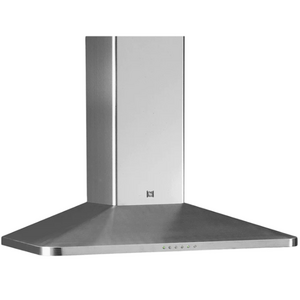

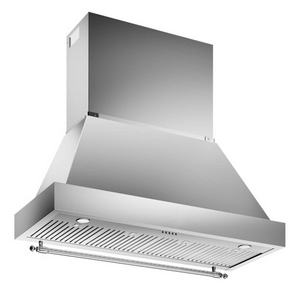

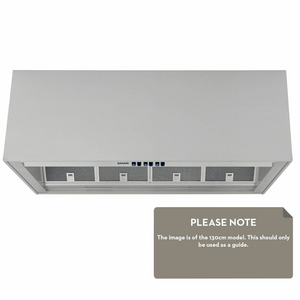

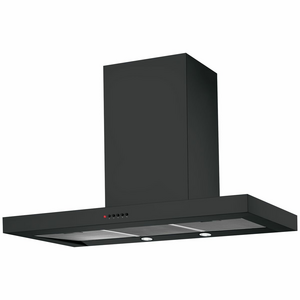

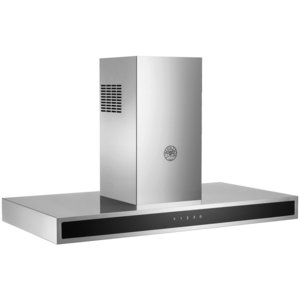

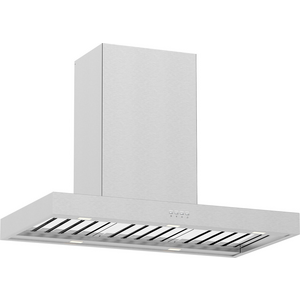

A chimney hood on the wall: a feature piece. Needs a clear wall and a straight duct up.

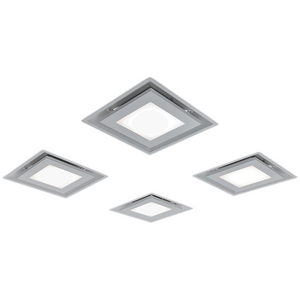

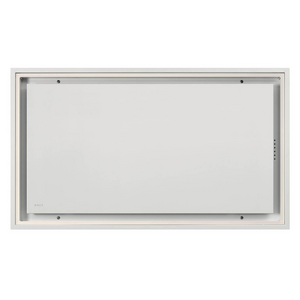

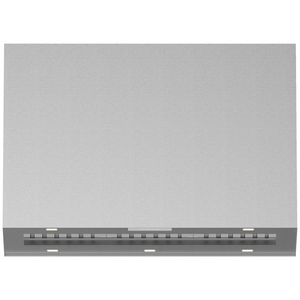

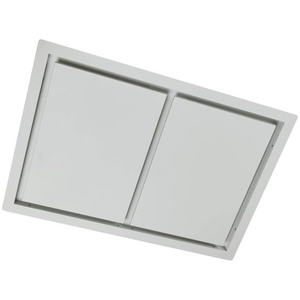

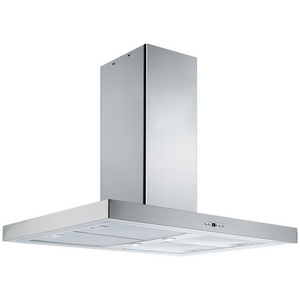

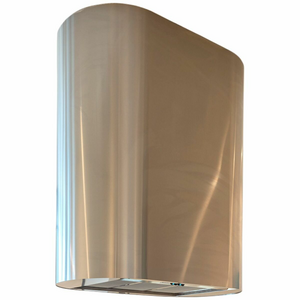

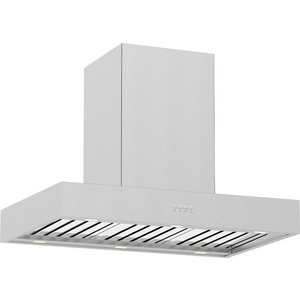

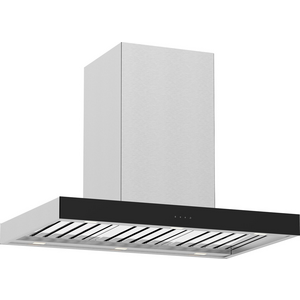

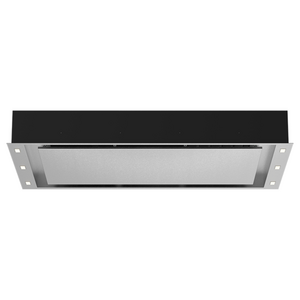

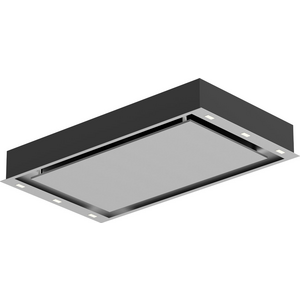

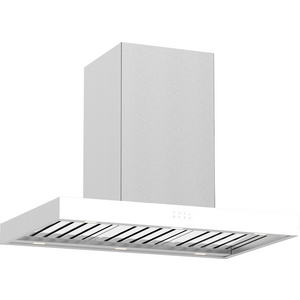

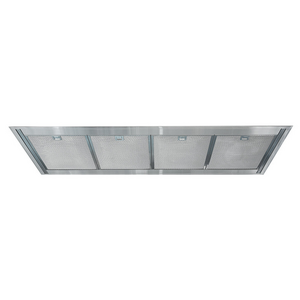

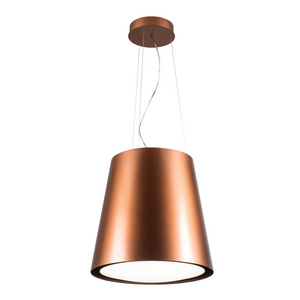

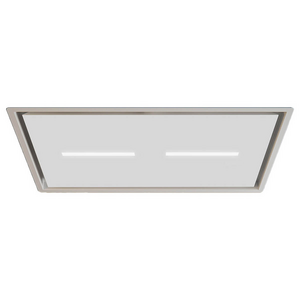

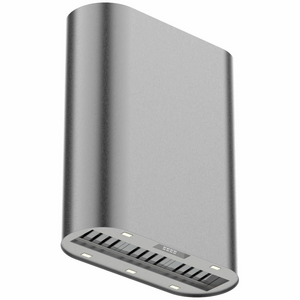

For a cooktop in an island. An island hood hangs from the ceiling; a cassette sits flush in it. Both need ceiling space for the duct and a ceiling that can take the fixing.

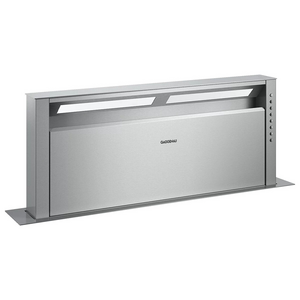

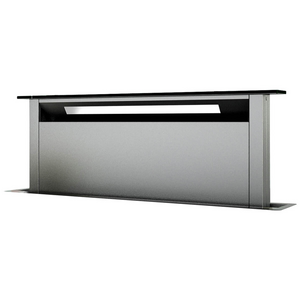

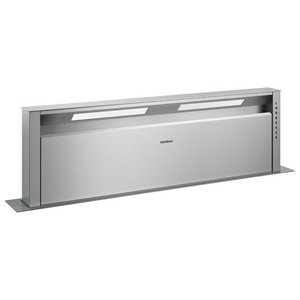

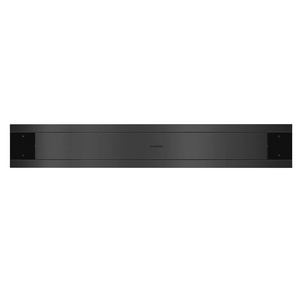

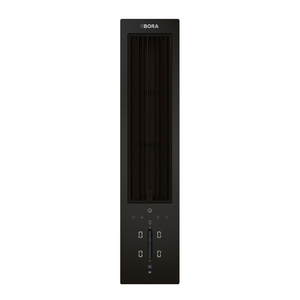

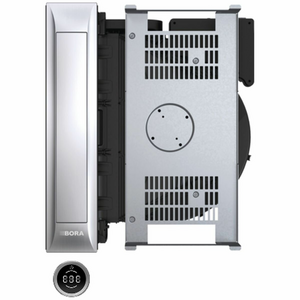

Rises out of the bench behind the cooktop when needed. Neat, but less effective than a hood above, and it eats cabinet space below.
Before you buy: Over gas, the hood goes at least 650 mm above the burners. Plan the duct at frame stage: route, size (often 150 mm round) and where it exits the roof or wall. A long or bent duct can halve a hood's airflow.
| Type | Models | Most common widths | Height mm | Depth mm | Cut-out mm | Middle price |
|---|---|---|---|---|---|---|
| Undermount | 330 | 90 cm, 120 cm, 60 cm, 150 cm | 275 to 572 | 275 to 500 | 497 to 1110 wide x 243 to 365 deep | $2,753 |
| Canopy | 233 | 90 cm, 120 cm, 60 cm, 110 cm | 300 to 1260 | 450 to 650 | See the install guide | $3,306 |
| Island | 61 | 90 cm, 120 cm, 35 cm, 70 cm | 210 to 1450 | 360 to 690 | See the install guide | $4,342 |
| Ceiling cassette | 48 | 120 cm, 35 cm, 100 cm, 90 cm | 91 to 319 | 360 to 700 | 340 to 1145 wide x 340 to 485 deep | $6,257 |

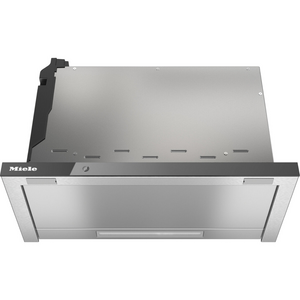

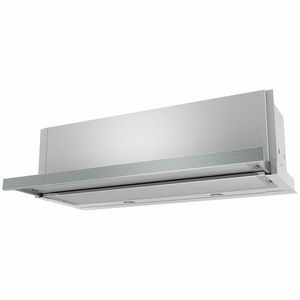

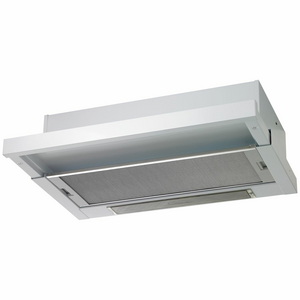

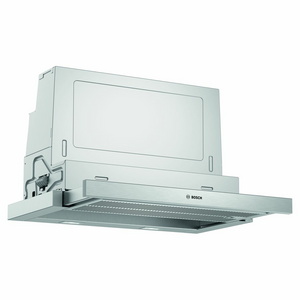

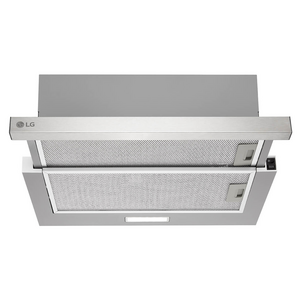

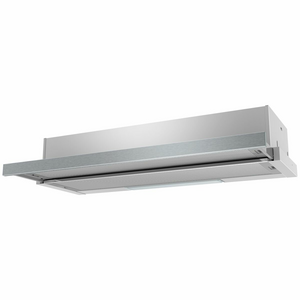

| Slide-out | 27 | 60 cm, 90 cm | 36 to 436 | 273 to 307 | 480 wide x 280 deep | $932 |
| Downdraft | 25 | 30 cm, 90 cm, 50 cm, 120 cm | 175 to 709 | 97 to 540 | 815 wide x 106 deep | $5,849 |

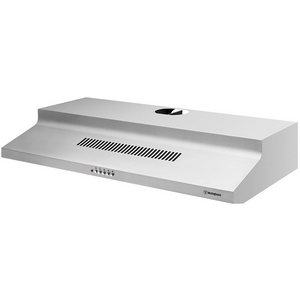

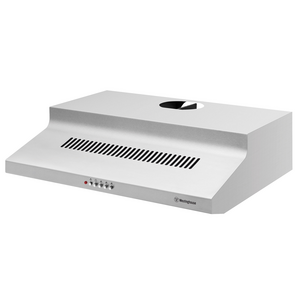

| Fixed | 17 | 60 cm, 90 cm, 150 cm, 100 cm | 160 to 1400 | 439 to 800 | See the install guide | $1,940 |
Ranges leave out the odd outlier. Cut-outs are for the models that publish one; the install guide for your model is the one to build to.

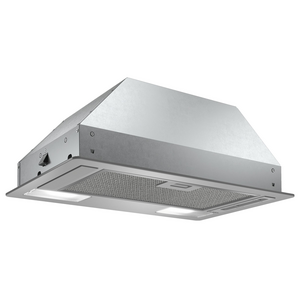

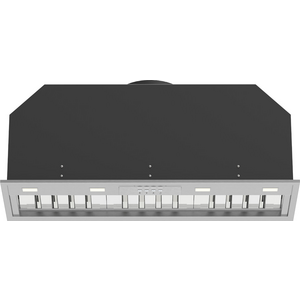

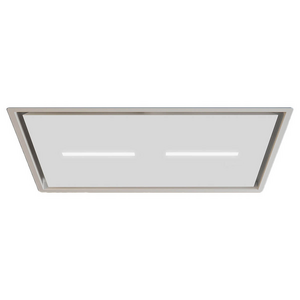

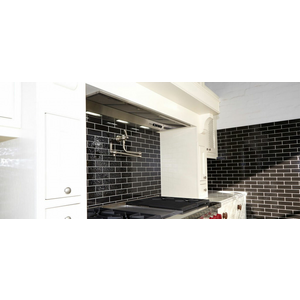

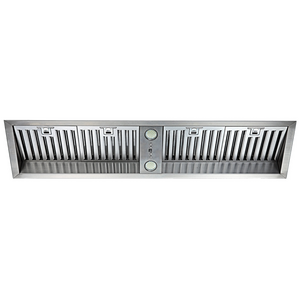

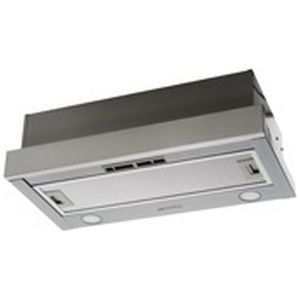

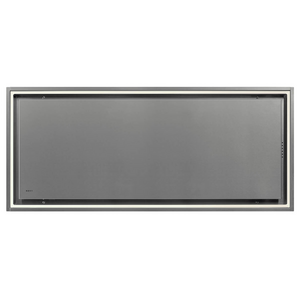

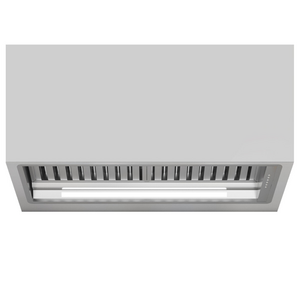

What Australians are buying most at Winning Appliances this month.








Nothing here by that name with these filters. Search everything




































































































































































































































































































































































































































































































































































































































































































































































Winning Appliances public product data (winnings.com.au), Brisbane prices. Photos and install guides are theirs, linked not copied. Prices are Winning Appliances' Brisbane prices, checked 2026-10-14; other stores differ. Popularity is their ranking. Bush Turkey sells nothing.
